Reduces noise
Reduces pressure variations
Complete for delivery
TTM Offset 200
TTM Offset 200
Equalisation vessel
TTM Offset is an equalisation vessel intended for use together with TTM NoXygen C6100 vacuum degasser in heating, cooling and recovery systems that are sensitive to pressure variations, such as systems with pump expansion.
TTM Offset prevents the system’s pump expansion system from creating noise in the property. At the same time, TTM Offset increases the pump expansion system’s lifespan, because pressure variations are minimised.
Inspection Obligation May Apply
This unit is classified as pressure equipment under EU Directive 2014/68/EU (PED). The product meets applicable safety and performance requirements and is CE-marked in accordance with the PED. The user is responsible for correct installation,
operation, and maintenance in accordance with the user manual.
Note that national regulations may vary between countries; inspection and verification obligations may apply and must be fulfilled according to local law.
Lees meer over:
Documentatie:

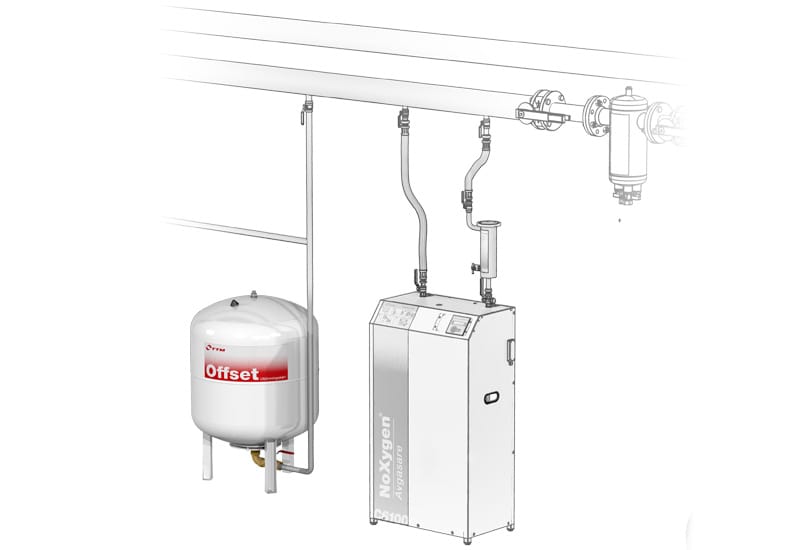

When installing in combination with vacuum degasser TTM NoXygen C6100, TTM Offset is connected to the system (DN25
int. thread) and then installed directly on the return flow close to
the pressurisation vessel.
| Description: | Specification: | |
|---|---|---|
| Model: | TTM Offset 200 PN 10 | TTM Offset 200 PN 16 |
| Article number: | 520412 | 520429 |
| Volume: | 200 litres | 200 litres |

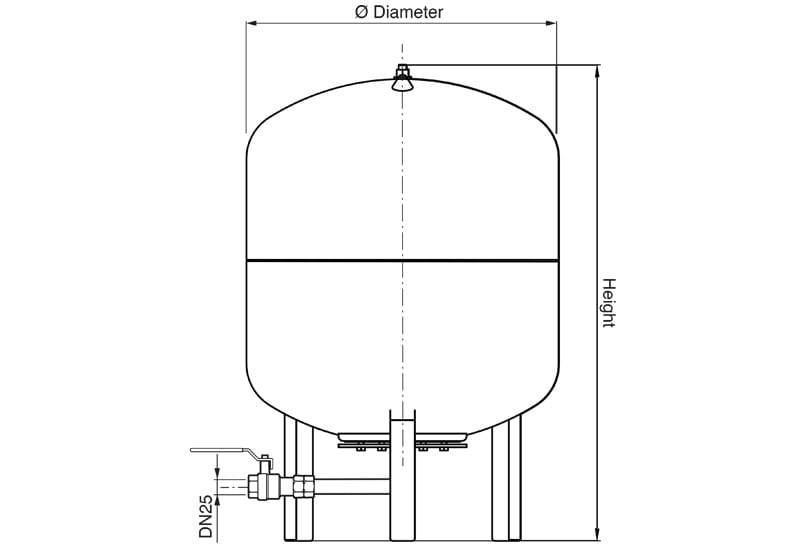

| Diameter x height: | Ø 634 x 967 mm | Ø 634 x 967 mm |
| Pre-pressure: | 3.2 bar | 3.2 bar |
| Max working pressure: | PN10 | PN16 |
| Media temperatur: | -10 – +70 °C | -10 – +70 °C |
| Connection (internal): | DN25 | DN25 |
| Weight: | 59 kg | 59 kg |
| Permitted liquids: | Water Ethanol less than 30% by volume Glycol max 30% | Water Ethanol less than 30% by volume Glycol max 30% |
| Material: Tank: Inner flange: Outer flange: Bladder: | Steel sheet Stainless steel Electro-galvanized steel Butyl | Steel sheet Stainless steel Electro-galvanized steel Butyl |
TTM Connection hose
The TTM Connection hose is a Butyl hose with stainless steel braiding and internally-threaded connections classified for pressures up to 10 bar.
